General features: It is a simple and efficient system (euro patent) completely in oilbath, which makes possible to drive two cutting knives in horizontal opposed movement. The force of inertia of each one of the knives is mutually balanced even though their relative stroke is bigger than the one of any single knife system. This brings a drastic reduction of the vibrations and an important increase of work pace.

Advantages of the system: The system brings a substantial working comfort to the operator, due to a drastic reduction of vibrations. Less effort and more efficiency. Wears and derangement resulting of vibrations decrease, with consequent saving in terms of spare parts and deadlocks of the machine. The investment cost will be amortised over a short time. Through the important augmentation of the stroke it is possible to obtain a considerable increase of the machine productivity, for it is possible to work with a lower motor's rotation speed and higher feed rate.

Technical data of the drive mechanism
Weight: kg. 24 (ballastable)
Length : mm. 450÷550
Relative stroke: mm.81
Max. width of the cutter bar: cm.183
Max. Rotation speed P.T.O. : R.P.M. 950
Oil content: kg. 0,5
Oil sort: ISO 680 EP SAE W140
Standard maintenance: periodical checking oil level, adjustment of knife heads.
Flange: adaptable to any type.
Colour: Matt black

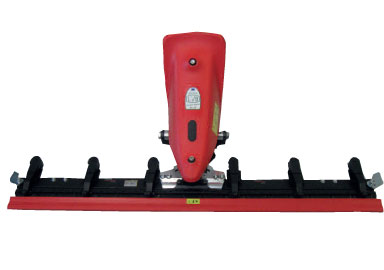

Technical data of the cutter bar type Dual-Profi K3
Appellation: Barra DUAL-PROFI K3
Available width: 97, 117, 137, 183 cm
Guide system: Lower knife: fixed rails and guide rails.
Upper knife: 4 self adjusting swivel arms in grease bath.
Adjustment: with screw.
Maintenance Lubrications: guide bolts on the knife every 5 ÷ 10 hours,
Self-adjusting arms every 25 ÷ 30 hours.
Packing corrugated board box (120) (145) (170)x25x8

Weight

cm.97 cm.117 cm.137 cm.183
kg.17,5 kg.20 kg.23 kg.28

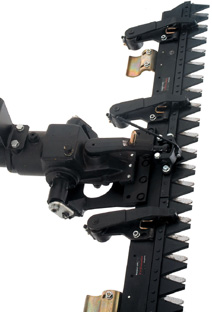

A very simple and solid mechanics. Adjustable upper knife head

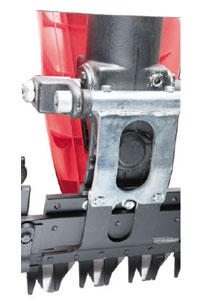

Lower knife head led in oilbath box. The straight-line movement is warranted

Side protection for knives. Adjustment cutting height. Selfadjusting arms. Minimal maintenance.

Type "DUAL-GARDEN" double action system.
